The GWN7802P is a PoE switch that provides smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points, and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local network controller embedded in the web user interface of the GWN7800 series switch. The series is also supported by GWN, Cloud, GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform.

GWN7802P Features & Benefits

• Gigabit Ethernet Ports - 16 POE ports
• Gigabit SFP Ports - 4
• Integrated Power Supply - 270W
• Max Output Power per PoE Port - 30W
• Max Total PoE Output Power - 240W
• PoE Standards - IEEE 802.3af/at
• Total non-blocking throughput - 20Gbps
• Switching Capability - 40Gbps

• DHCP - DHCP server, DHCP relay, Option 82, 60,160 and 43
• Multicast - IGMP Snooping, MLD Snooping, MVR

Security -

• User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock) support

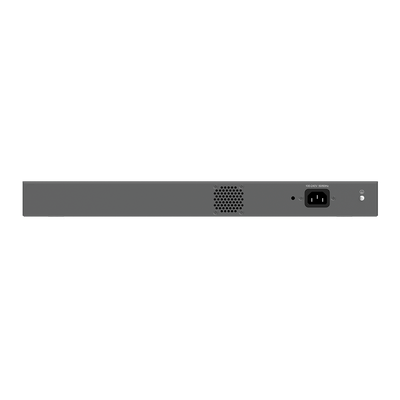

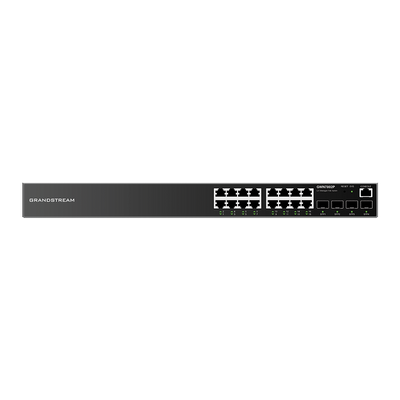

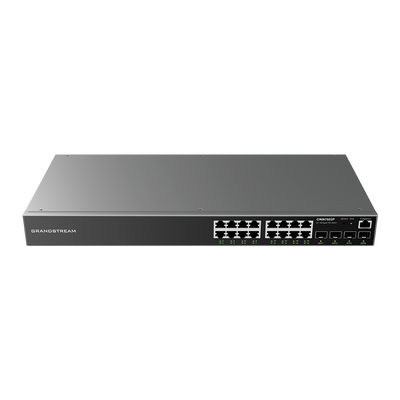

Grandstream GWN7802P Enterprise Layer 2+ Managed PoE Network Switch
